Internals Constructed of Special Materials

Highly corrosive and high temperature operations require high-grade materials.

If chemical resistant plastic material cannot be used due to decreasing stability at high temperatures, high grade material such as zirconium or tantalum can be used. However in some cases we can offer chemically resistant and competitive constructions which combine several materials into one part as shown as follows: CFC load-bearing frame, tantalum drip tubes and a TFM/PTFE base.

An excerpt from our list of materials:

  • Super duplex
  • SX
  • copper
  • GFK
  • silver
  • tantalum
  • Graphite / CFC
  • PTFE
  • zirconium
  • Alloy 20
  • nickel
  • other materials on request

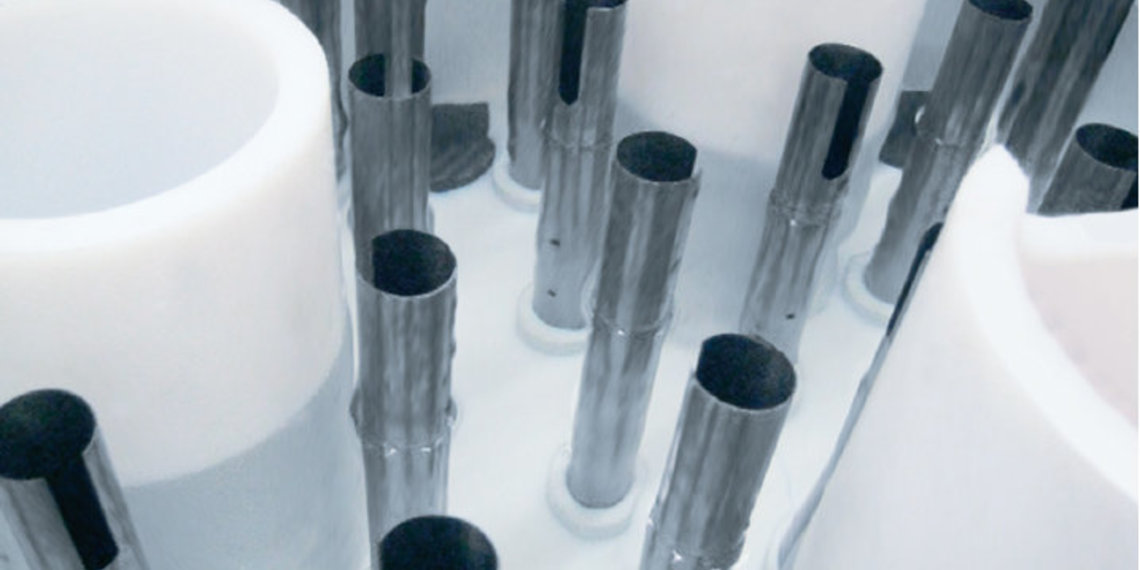

  • Hero: Drip Tubes Tantal  |  Ablaufröhrchen aus Tantal
    Internals made of Special Materials
    Drip tubes made out of Tantalum

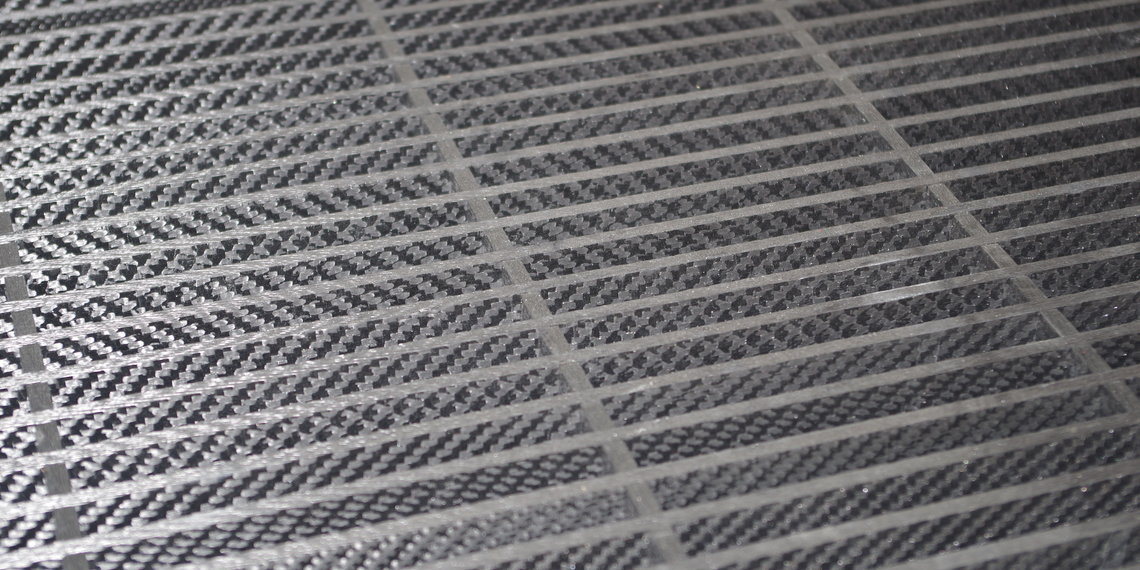

  • Hero: CFC Grid  |  CFC Rost
    Internals made of Special Materials
    A graphite/CFC support grid

Example

Task: Reduce cost of liquid distributor

Materials approved by customer:

  • Tantalum = expensive
  • Carbon fibre reinforced carbon (CFC) = high structural stability
  • PTFE = poor mechanical stability

Solution:

  • (CFC) load-bearing frame
  • Distribution devices / Tantalum drip tubes
  • All other components made of TFM / PTFE
